Hand Drawing / Speculative Engineering

Status: Concepts • 2014
Duration: 1 week each

A series of technical hand drawings that rigorously analyse the form and function of the intricacies of their respective mechanical subjects.

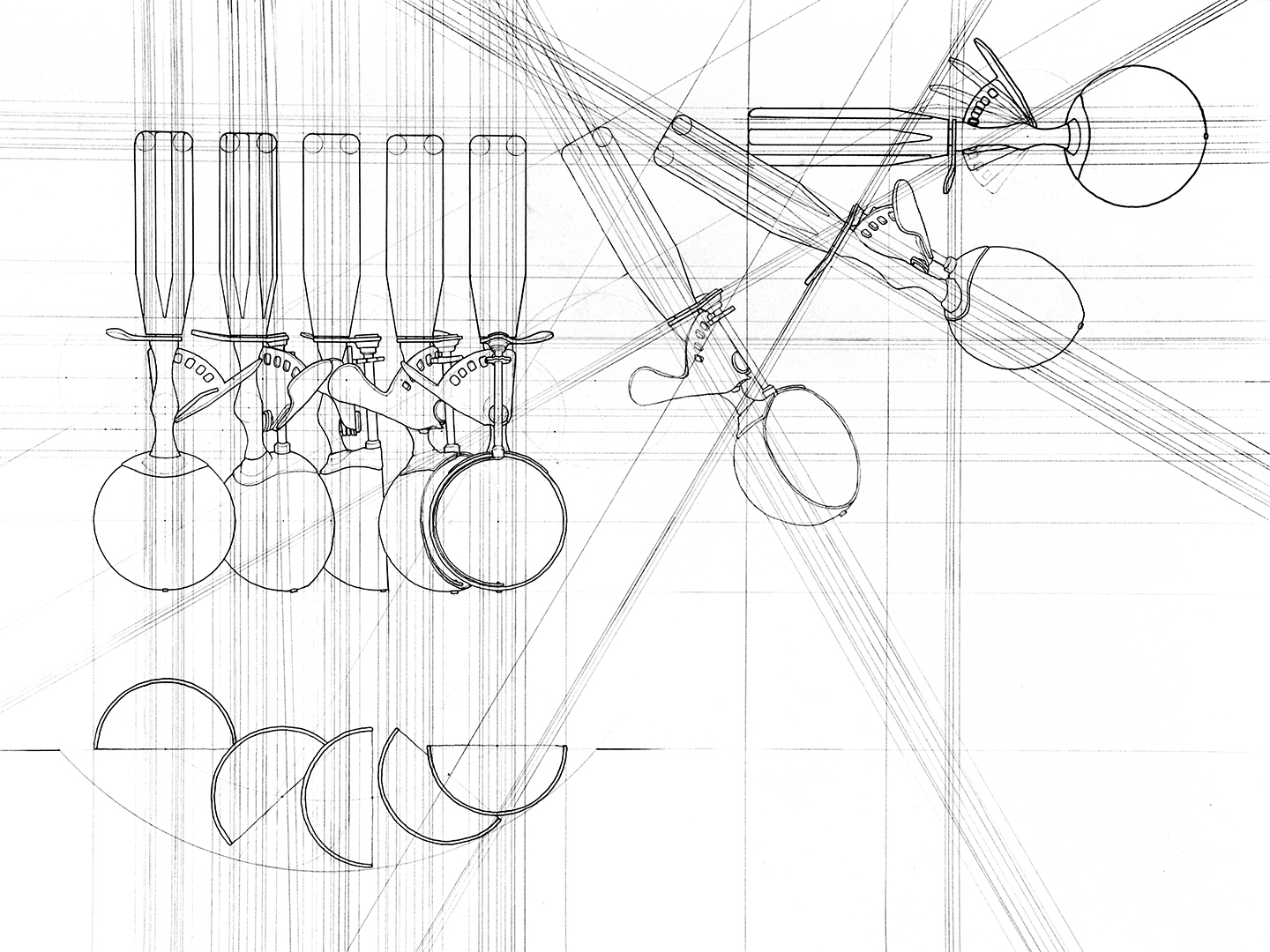

Ice Cream Scoop // This project aims to geometrically and functionally dissect and represent an ice cream scoop in one drawing. A further study model explores its motion and use as a tool as shown below.

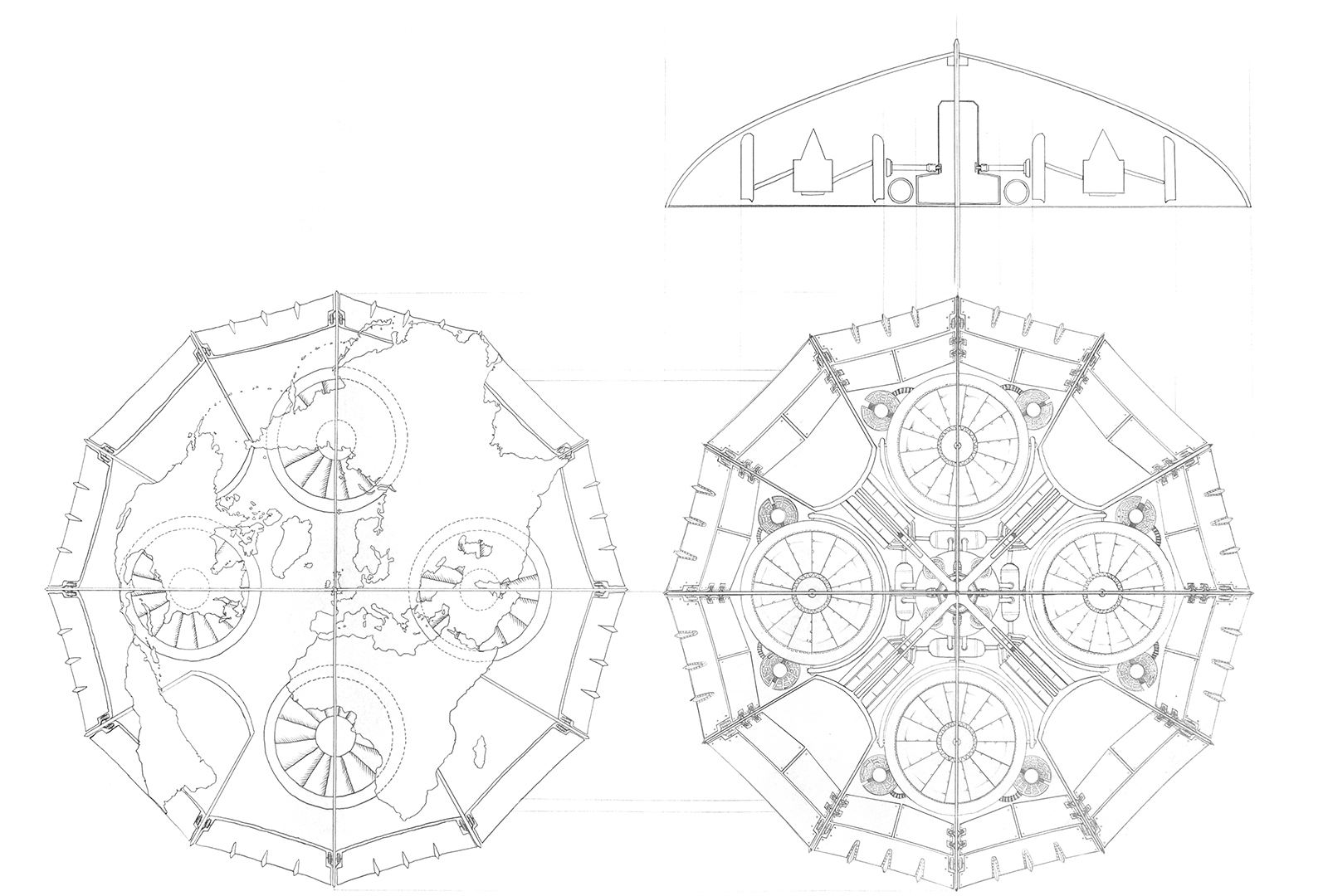

Mary Poppins’ Umbrella // This piece examines the proprietary mode of transport of one magical English nanny. Some liberties are taken in assumptions of aviation technology and Mary Poppins’ durability in this speculative drawing, which includes a section, top elevation and bottom elevation.
